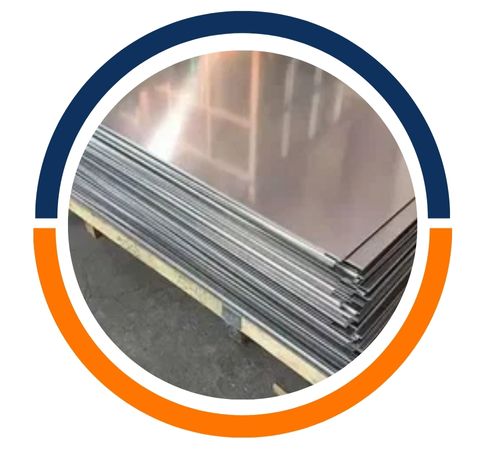

Based in the heart of Kinshasa, Yoane Steel has established itself as a trusted partner for industry, providing robust material solutions that meet the demanding needs of the region. We take pride in supplying high-grade HB 400 Sheet and Plates, materials chosen for their exceptional strength and reliability. Our commitment extends beyond simple supply; we aim to be a foundational support for the ambitious projects that are building a stronger future for the Congo, ensuring our clients have access to the very best in structural steel.
The HB 400 classification signifies a specific high-strength, abrasion-resistant steel. Its composition includes carefully balanced alloying elements which give it a Brinell hardness of approximately 400, translating directly into superior resistance to wear and impact. This means the plates can withstand significant force and repeated abrasion without deforming or failing. The resulting mechanical strength makes it significantly more durable than standard structural steels, offering a long service life even under the most challenging conditions.
Width:Â 500-3000mm
Thickness :Â 3-130mm
Length:Â 1000-12000mm
Heat Treatment:Â N, Q+T
Surface Paint:Â EP, PE, HDP, SMP, PVDF
| Hardened 400 Chemical Composition (%) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Plate | C | Si | Mn | P | S | Cr | Ni | Mo | B | CEV | CET |
| thickness mm | max % | max % | max % | max % | max % | max % | max % | max % | max % | typv | typv |
| 3- 6 | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.50 | 0.25 | 0.25 | 0.004 | 0.41 | 0.28 |
| 3-（8） | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.30 | 0.25 | 0.25 | 0.004 | 0.33 | 0.23 |
| 8 – 20 | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.50 | 0.25 | 0.25 | 0.004 | 0.37 | 0.27 |
| （20）-32 | 0.18 | 0.70 | 1.60 | 0.025 | 0.01 | 1.00 | 0.25 | 0.25 | 0.004 | 0.48 | 0.29 |
| （32）-45 | 0.22 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 0.50 | 0.60 | 0.004 | 0.57 | 0.31 |
| （45）-51 | 0.22 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 0.50 | 0.60 | 0.004 | 0.57 | 0.38 |
| （51）-80 | 0.27 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 1.00 | 0.60 | 0.004 | 0.65 | 0.41 |
| （80）-130 | 0.32 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 1.50 | 0.60 | 0.004 | 0.73 | 0.48 |
| Mechanical properties of Hardened 400 | |||||
|---|---|---|---|---|---|
| Grade | Mechanical Property | Charpy V Impact Test | |||
| HARDOX 400 | Yield | Tensile | Elongation | Degree | longitudinal |
| Min Mpa | Mpa | Min % | -40 | J | |
| 1000 | 1250 | 10 | 45 | ||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Thickness (mm) | Product | Hardness Range (HBW) |
|---|---|---|
| 2.5 – 6.4 | Cut Lengths | 360 – 420 |
| 5 – 15 | Heavy Plates | 360 – 420 |
| 15- 30 | Heavy Plates | 360 – 450 |
| 30 – 60 | Heavy Plates | 360 – 480 |
The exceptional toughness of HB 400 Sheet and Plates makes them indispensable for applications where durability is paramount. They are the material of choice for building the bodies of heavy-duty mining trucks, rock crushers, and earth-moving equipment that faces constant abrasion. You will also find them used in the construction of robust industrial machinery, hoppers, and chutes in processing plants, and anywhere else that requires a lining or component that can stand up to intense, unrelenting wear and tear, year after year.
Yoane Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Kinshasa, Congo.
