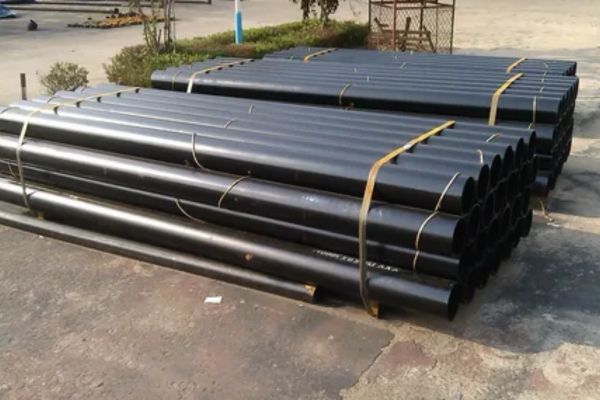

In the heart of Kinshasa, Yoane Steel stands as a trusted partner for industry, bringing precision and reliability to the forefront. We specialize in the supply of EN10305-2 and EN10305-3 ERW tubing, materials engineered for exacting standards. Our commitment is to provide businesses across Congo with high-quality steel tubing solutions that form the backbone of durable and efficient projects, ensuring that every component we deliver meets the rigorous demands of modern engineering and construction.
Fundamentally, these ERW tubes are crafted from fine-grained steel, offering a consistent and smooth surface finish. They are defined by their precise dimensional tolerances and excellent mechanical properties, including consistent yield strength and good weldability. This makes them exceptionally reliable for structural and mechanical applications where predictability and uniformity are not just beneficial, but absolutely essential for safety and performance.
| Steel Name | Steel Number | C max, % max. | Si max, % max. | Mn max, % max. | P max, % max. | S max, % max. |
| E155 | 1.0033 | 0,11 | 0.35 | 0.70 | 0.025 | 0.025 |
| E195 | 1.0034 | 0,15 | 0.35 | 0.70 | 0.025 | 0.025 |
| E235 | 1.0308 | 0,17 | 0.35 | 1.20 | 0.025 | 0.025 |
| E275 | 1.0225 | 0,21 | 0.35 | 1.40 | 0.025 | 0.025 |
| E355 | 1.0580 | 0,22 | 0.55 | 1.60 | 0.025 | 0.025 |
| Steel Name | Â Â Steel Grade | Cold Drawn /Â Hard | Cold Drawn /Â Soft | Â Â Cold Drawn & stress relieved | Â Â Annealed | Â Â Normalised | |||||||
| Rm, Mpa (N/mm2) |
A, % |
Rm, Mpa (N/mm2) |
A, % |
Rm, Mpa (N/mm2) | ReH, MPa (N/mm2) |
A, % |
Rm, Mpa (N/mm2) | A, % | Rm, Mpa (N/mm2) | ReH, MPa (N/mm2) |
A, % |
||
|
E155 |
1.0033 |
400 |
6 |
350 |
10 |
350 |
245 |
18 |
260 |
28 |
270 – 410 |
155 |
28 |
|
E195 |
1.0034 |
420 |
6 |
370 |
10 |
370 |
260 |
18 |
290 |
28 | 300 – 440 |
195 |
28 |
|
E235 |
1.0308 |
490 |
6 |
440 |
10 |
440 |
325 |
14 |
315 |
25 | 340 – 480 |
235 |
25 |
|
E275 |
1.0225 |
560 |
5 |
510 |
8 |
510 |
375 |
12 |
390 |
21 |
410 – 550 |
275 |
21 |
|
E355 |
1.0580 |
640 |
4 |
590 |
6 |
590 |
435 |
10 |
450 |
22 | 490 – 630 |
355 |
22 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a leading manufacturer and distributor of high-quality EN10305-2 / EN10305-3 ERW Tubing in Kinshasa, Congo. We provide premium steel materials and a diverse range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Dedicated to fast delivery and exceptional customer service, we source top-grade raw materials to ensure superior precision, strength, and durability for demanding industrial applications. Contact us today for all your EN10305-2 / EN10305-3 ERW Tubing needs!
|
Hot rolled |
Outside Diameter, mm |
Tolerance, mm |
|
OD≤101.6 |
+0.4/-0.8 |
|
|
101.6＜OD≤177.8 |
+0.4/-1.2 |
|
|
Cold Drawn |
Outside Diameter, mm |
Tolerance, mm |
|
OD＜25.4 |
±0.10 |
|
|
25.4≤OD≤38.1 |
±0.15 |
|
|
38.1＜OD＜50.8 |
±0.20 |
|
|
50.8≤OD＜63.5 |
±0.25 |
|
|
63.5≤OD＜76.2 |
±0.30 |
|
|
76.2≤OD≤101.6 |
±0.38 |
|
|
101.6＜OD≤177.8 |
+0.38/-0.64 |
|
|
Hot rolled
|
Outside Diameter, mm |
Tolerance, % |
|
OD≤101.6, WT≤2.4 |
+40/-0 |
|
|
OD≤101.6, 2.4＜WT≤3.8 |
+35/-0 |
|
|
OD≤101.6, 3.8＜WT≤4.6 |
+33/-0 |
|
|
OD≤101.6, WT>4.6 |
+28/-0 |
|
|
OD>101.6, 2.4＜WT≤3.8 |
+35/-0 |
|
|
OD>101.6, 3.8＜WT≤4.6 |
+33/-0 |
|
|
OD>101.6, WT>4.6 |
+28/-0 |
|
|
Cold Drawn
|
Outside Diameter, mm |
Tolerance, % |
|
OD≤38.1 |
+20/-0 |
|
|
OD>38.1 |
+22/-0 |
The versatility of this tubing is remarkable. You’ll find EN10305-2 tubes perfectly suited for high-pressure hydraulic and pneumatic systems, while the tighter tolerances of EN10305-3 make it ideal for automotive parts, machinery frames, and demanding structural applications. From the chassis of vehicles to the intricate components of conveyor systems, this tubing provides the silent, sturdy support that keeps industries moving forward efficiently and safely every single day.
