Operating from the heart of Kinshasa, Yoane Steel is a trusted name for industrial materials, bringing strength and reliability directly to our local industries. We take pride in supplying high-quality Carbon Steel EN 10210-1 pipes, a product built to meet the rigorous demands of major construction and engineering projects. Understanding the unique challenges of the Congolese market, we ensure dependable availability and expert support, making us a committed partner in building a stronger infrastructure for our nation’s future.
The strength of the EN 10210-1 pipe comes from its carefully balanced composition, primarily iron with precise amounts of carbon, manganese, and other elements. This formulation gives the pipe its excellent mechanical properties, including a high yield strength that allows it to withstand heavy loads without deforming. It is this combination of a robust chemical makeup and reliable performance under stress that makes it a go-to material for structural integrity, ensuring your projects have a solid and lasting foundation.
| Attribute | Specification |
|---|---|
| Type | Seamless / Welded / ERW |

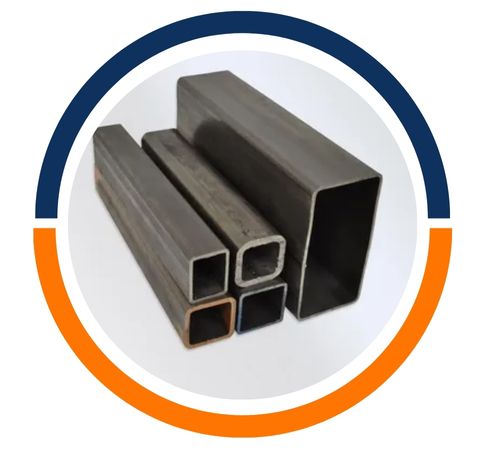

| SHS (Square Hollow Sections) Sizes | 20 x 20 mm to 400 x 400 mm |
| Length | 6000 mm to 14000 mm |
| Dimensional Tolerances | Thickness: All sizes +/- 10% |
| Standard | BS EN 10210 – Hot finished structural hollow sections of non-alloy and fine grain steels |
| Surface Protection | Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized |
| Dimension Range | 21.3 mm to 914 mm |
| Packing | In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End Capped Certification & supplementary test, Finishing & Identity Mark |
| Wall Thickness | 0.5 mm to 25 mm |
| Steel Grade | Chemical Composition Limits (%) | |||||
| C Max. | Si Max. | Mn Max. | P Max. | S Max. | N Max. | |
| S235JRH | 0.17 | – | 1.40 | 0.040 | 0.040 | 0.009 |
| S275J0H | 0.20 | – | 1.50 | 0.035 | 0.035 | 0.009 |
| S275J2H | 0.20 | – | 1.50 | 0.030 | 0.030 | – |
| S355J0H | 0.22 | 0.55 | 1.60 | 0.035 | 0.035 | 0.009 |
| S355J2H | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | – |
| S355K2H | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | – |
| Steel Grade | Mechanical Properties | Impact Energy (KV J) | ||||
| Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) | Test Temperature At Test Temperature of ℃ | |||
| -20 | 0 | 20 | ||||
| S235JRH | 235 | 360-510 | 26 | – | – | 27 |
| S275J0H | 275 | 410-560 | 23 | – | 27 | – |
| S275J2H | 275 | 410-560 | 23 | 27 | – | – |
| S355J0H | 355 | 510-680 | 22 | – | 27 | – |
| S355J2H | 355 | 510-680 | 22 | 27 | – | – |
| S355K2H | 355 | 510-680 | 22 | 40 | – | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel EN 10210-1 Pipe products in Kinshasa, Congo. Specializing in premium steel materials, we offer a diverse range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a strong commitment to reliable delivery and exceptional customer service, Jaxon Steel provides top-grade materials that ensure superior performance in various industrial applications. Trust Jaxon Steel for all your Carbon Steel EN 10210-1 Pipe needs.
| Size mm | kg/m | Size mm | kg/m |
| 20 x 20 x 2.0 | 1.12 | 20 x 20 x 2.5 | 1.35 |
| 25 x 25 x 1.5 | 1.06 | 25 x 25 x 2.0 | 1.43 |
| 25 X 25 X 2.5 | 1.74 | 25 X 25 X 3.0 | 2.04 |
| 30 X 30 X 2.0 | 1.68 | 30 X 30 X 2.5 | 2.14 |
| 30 X 30 X 3.0 | 2.51 | 40 x 40 x 1.5 | 1.81 |
| 40 x 40 x 2.0 | 2.31 | 40 x 40 x 2.5 | 2.92 |
| 40 x 40 x 3.0 | 3.45 | 40 x 40 x 4.0 | 4.46 |
| 40 x 40 x 5.0 | 5.40 | 50 x 50 x 1.5 | 2.28 |
| 50 x 50 x 2.0 | 2.93 | 50 x 50 x 2.5 | 3.71 |
| 50 x 50 x 3.0 | 4.39 | 50 x 50 x 4.0 | 5.72 |
| 50 x 50 x 5.0 | 6.97 | 60 x 60 x 3.0 | 5.34 |
| 60 x 60 x 4.0 | 6.97 | 60 x 60 x 5.0 | 8.54 |
| 60 x 60 x 6.0 | 9.45 | 70 x 70 x 3.0 | 6.28 |
| 70 x 70 x 3.6 | 7.46 | 70 x 70 x 5.0 | 10.11 |
| 70 x 70 x 6.3 | 12.50 | 70 x 70 x 8 | 15.30 |
| 75 x 75 x 3.0 | 7.07 | 80 x 80 x 3.0 | 7.22 |
| 80 x 80 x 3.6 | 8.59 | 80 x 80 x 5.0 | 11.70 |
| 80 x 80 x 6.0 | 13.90 | 90 x 90 x 3.0 | 8.01 |
| 90 x 90 x 3.6 | 9.72 | 90 x 90 x 5.0 | 13.30 |
| 90 x 90 x 6.0 | 15.76 | 90 x 90 x 8.0 | 20.40 |
| 100 x 100 x 3.0 | 8.96 | 100 x 100 x 4.0 | 12.00 |
| 100 x 100 x 5.0 | 14.80 | 100 x 100 x 5.0 | 14.80 |
| 100 x 100 x 6.0 | 16.19 | 100 x 100 x 8.0 | 22.90 |
| 100 x 100 x 10 | 27.90 | 120 x 120 x 5 | 18.00 |
| 120 x 120 x 6.0 | 21.30 | 120 X 120 X 6.3 | 22.30 |
| 120 x 120 x 8.0 | 27.90 | 120 x 120 x 10 | 34.20 |
| 120 X 120 X 12 | 35.8 | 120 X 120 X 12.5 | 41.60 |
| 140 X 140 X 5.0 | 21.10 | 140 X 140 X 6.3 | 26.30 |
| 140 X 140 X 8 | 32.90 | 140 X 140 X 10 | 40.40 |
| 140 X 140 X 12.5 | 49.50 | 150 X 150 X 5.0 | 22.70 |
| 150 X 150 X 6.3 | 28.30 | 150 X 150 X 8.0 | 35.40 |
| 150 X 150 X 10 | 43.60 | 150 X 150 X 12.5 | 53.40 |
| 150 X 150 X 16 | 66.40 | 150 X 150 X 16 | 66.40 |
| 180 X 180 X 5 | 27.40 | 180 X 180 X 6.3 | 34.20 |
| 180 X 180 X 8 | 43.00 | 180 X 180 X 10 | 53.00 |
| 180 X 180 X 12.5 | 65.20 | 180 X 180 X 16 | 81.40 |
| 200 X 200 X 5 | 30.50 | 200 X 200 X 6 | 35.8 |
| 200 x 200 x 6.3 | 38.2 | 200 x 200 x 8 | 48.00 |
| 200 x 200 x 10 | 59.30 | 200 x 200 x 12.5 | 73.00 |
| 200 x 200 x 16 | 91.50 | 250 x 250 x 6.3 | 48.10 |
| 250 x 250 x 8 | 60.50 | 250 x 250 x 10 | 75.00 |
| 250 x 250 x 12.5 | 92.60 | 250 x 250 x 16 | 117.00 |
| 300 x 300 x 6.3 | 57.90 | 300 x 300 x 8 | 73.10 |
| 300 x 300 x 10 | 57.90 | 300 x 300 x 8 | 90.70 |
| 300 x 300 x 12.5 | 112.00 | 300 x 300 x 16 | 142.00 |
| 350 x 350 x 8 | 85.70 | 350 x 350 x 10 | 106.00 |
| 350 x 350 x 12.5 | 132.00 | 350 x 350 x 16 | 167.00 |
| 400 x 400 x 10 | 122.00 | 400 x 400 x 12 | 141.00 |
| 400 x 400 x 12.5mm | 152.00 | 400 x 400 x 16 | 192 |
| Outer diameter and wall Thickness | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Execution | Size Range | OD Tolerance | Wall tolerance | ||||||
| Hot-rolled Tube | OD – 80 mmOD > 80 mmWall < 12 mmWall – 12 mm | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm | ||||||
| Hot-rolled peeled tube | All sizesWall < 12 mmWall – 12 mm | + 0.25/- 0 mm | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) | ||||||
| Cold Worked tubecold-rolled or cold-drawn | OD < 40 mmOD 40 – 80 mmOD > 80 Wall Thickness< 6 mm Wall Thickness6 – 8 mm Wall Thickness > 8 | + 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm* | ± 0.30 mm± 0.35 mm± 0.40 mm | ||||||
Due to its exceptional strength and durability, the Carbon Steel EN 10210-1 pipe is the backbone of modern infrastructure. You’ll find it forming the essential skeletons of commercial buildings, industrial warehouses, and large-scale agricultural frameworks. It’s also indispensable for constructing sturdy bridges, reliable support columns, and various mechanical engineering applications. Essentially, wherever a project calls for a material that guarantees long-term stability and can handle significant structural stress, this pipe delivers unwavering performance.
