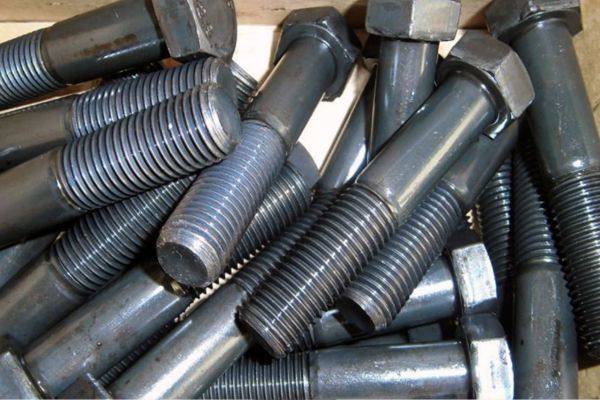

In the heart of Kinshasa, Yoane Steel has carved out a vital role as a trusted partner for industry, supplying essential components that keep our city and nation building. We take particular pride in our dependable carbon steel bolts, a fundamental piece in countless projects. Known for their strength and reliability, these fasteners are produced to meet the rigorous demands of both local craftsmanship and major development initiatives, making them a cornerstone of progress across the Democratic Republic of Congo.
The composition of these bolts is a careful balance of iron and carbon, creating a material known for its impressive strength and durability. Through a controlled heat-treatment process, we enhance their mechanical properties, achieving a high tensile strength that allows them to withstand significant pulling forces without stretching or breaking. This also gives them excellent hardness and good resistance to wear, ensuring they can handle the demanding environments where they are commonly put to work.
Specification :Â ASTM F568 / ASME SF568
Dimension :Â DIN, ISO, ASTM, JIS, BS, GB, IS and all International Standards
Size Range :Â M3 – M56 | 3/6″ to 2″ | Custom Sizes
Length :Â 3 mm to 200 mm

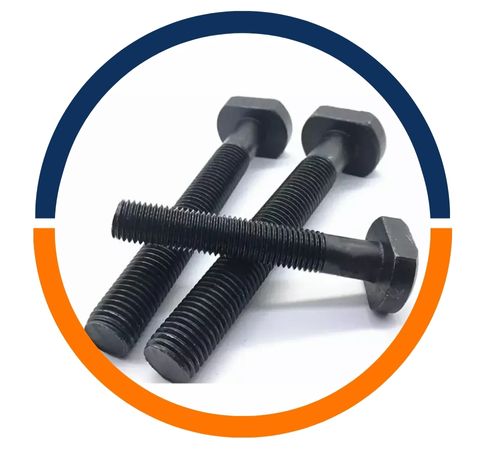

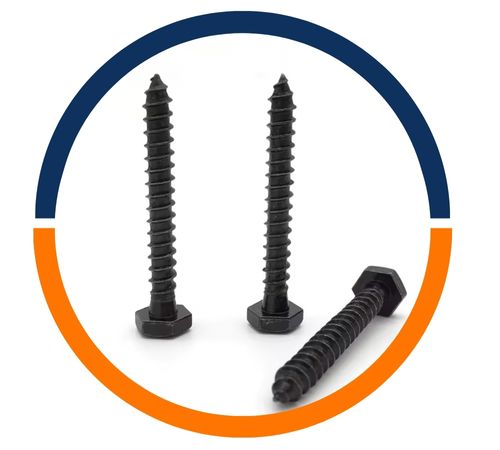

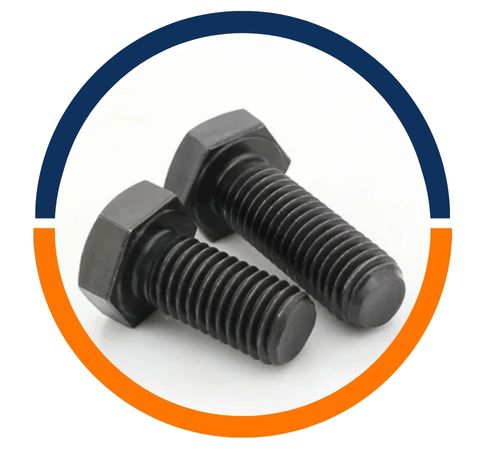

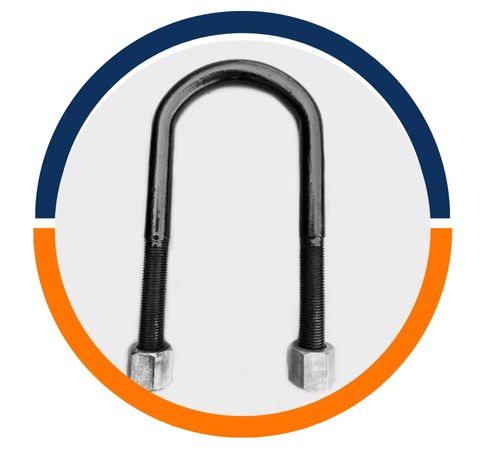

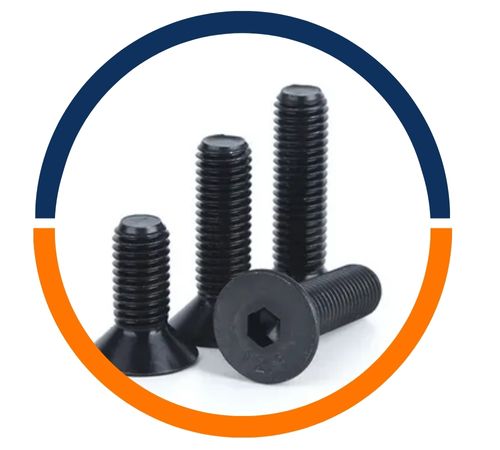

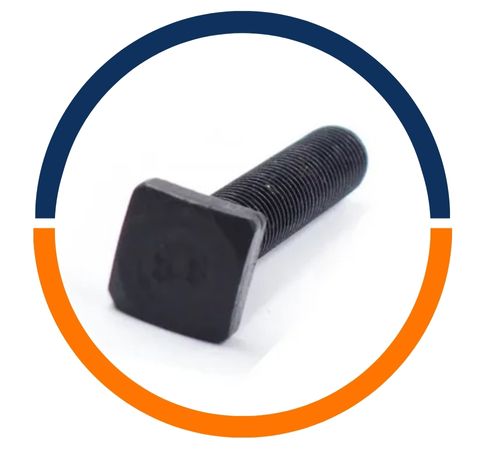

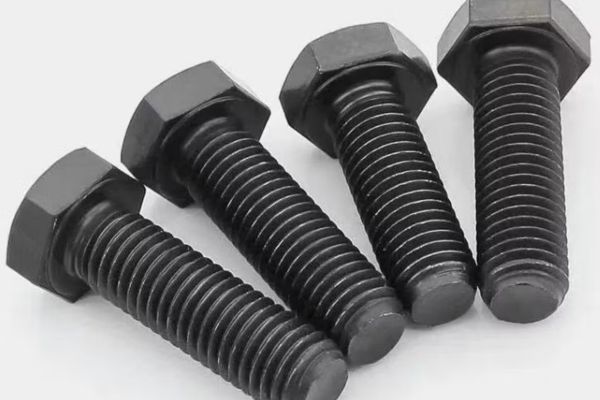

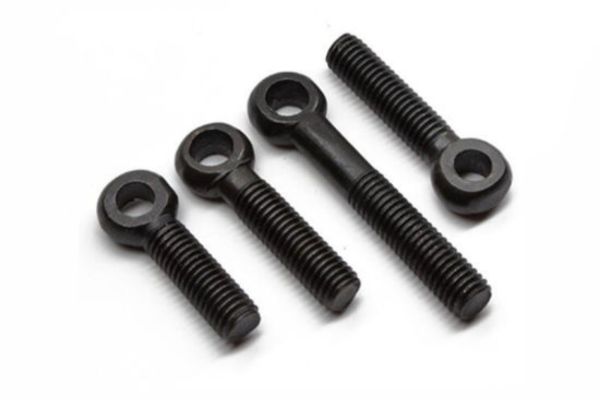

Type : Hex Head Bolts, Square Bolts, U bolts, Eye bolts, T bolt, Hex Bolt, Lag Bolts, Counter sunk Bolts
| Grade | C | P | S | B |
| Carbon Steel 10.9 | 0.20-0.55 | 0.025 | 0.025 | 0.003 |
| Carbon Steel 12.9 | 0.28-0.5 | 0.025 | 0.025 | 0.003 |
| Element | Nominal thread diameter size range [mm] | Proof strength [MPa] | Yield strength (min) [MPa] | Tensile strength (min) [MPa] | Hardness [Rockwell] |
| Carbon Steel 10.9 | 5–100 | 830 | 940 | 1040 | C32–39 |
| Carbon Steel 12.9 | 1.6–100 | 970 | 1100 | 1220 | C39–44 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trustworthy manufacturer and supplier of quality Carbon Steel Bolts in Kinshasa, Congo. We specialize in top-grade steel products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel, with the main focus being on Carbon Steel Sheets and Plates. Our vast inventory also includes Pipes, Tubes, Flanges, Forged Fittings, and Bars. Committed to fast delivery and excellent customer service, we use only the finest raw materials to deliver excellent strength, durability, and performance for high-demand industrial uses. Contact us today for all your Carbon Steel Bolt needs!
| Heavy Hex Bolt Diameter | Â D | Â F | Â C | Â H | |||||
|  Body Diameter  |  Width Across Flats |  Width Across Corners |  Height | ||||||
|  Max |  Basic |  Max    |  Min     |  Max |  Min |  Basic |  Max    |  Min    | |
| 1/2 | 0.515 | 7/8 | 0.875 | 0.850 | 1.010 | 0.969 | 11/32 | 0.364 | 0.302 |
| 5/8 | 0.642 | 1-1/16 | 1.062 | 1.031 | 1.227 | 1.175 | 27/64 | 0.444 | 0.378 |
| 3/4 | 0.768 | 1-1/4 | 1.250 | 1.212 | 1.443 | 1.383 | 1/2 | 0.524 | 0.455 |
| 7/8 | 0.895 | 1-7/16 | 1.438 | 1.394 | 1.660 | 1.589 | 37/64 | 0.604 | 0.531 |
| 1 | 1.022 | 1-5/8 | 1.625 | 1.575 | 1.876 | 1.796 | 43/64 | 0.700 | 0.591 |
| 1-1/8 | 1.149 | 1-13/16 | 1.812 | 1.756 | 2.093 | 2.002 | 3/4 | 0.780 | 0.658 |
| 1-1/4 | 1.277 | 2 | 2.00 | 1.938 | 2.309 | 2.209 | 27/32 | 0.876 | 0.749 |
| 1-3/8 | 1.404 | 2-3/16 | 2.188 | 2.119 | 2.526 | 2.416 | 29/32 | 0.940 | 0.810 |
| 1-1/2 | 1.531 | 2-3/8 | 2.375 | 2.300 | 2.742 | 2.622 | 1 | 1.036 | 0.902 |
| 1-3/4 | 1.785 | 2-3/4 | 2.750 | 2.662 | 3.175 | 3.035 | 1-5/32 | 1.196 | 1.054 |
| 2 | 2.039 | 3-1/8 | 3.125 | 3.025 | 3.608 | 3.449 | 1-11/32 | 1.388 | 1.175 |
| 2-1/4 | 2.305 | 3-1/2 | 3.500 | 3.388 | 4.041 | 3.862 | 1-1/2 | 1.548 | 1.327 |
| 2-1/2 | 2.559 | 3-7/8 | 3.875 | 3.750 | 4.474 | 4.275 | 1-21/32 | 1.708 | 1.479 |
| Nominal or Basic Product Diameter | E | F | G | H | J | LT (Thread Length) | Y | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Body Diameter | Width Across Flats | Width Across Corners | Head Height | Wrenching Height | For Bolt Lengths | For Bolt Lengths | Transition Thread Length | ||||||||
| 1/4 | 0.25 | 0.25 | 0.245 | 7/16 | 0.438 | 0.428 | 0.505 | 0.488 | 5/32 | 0.163 | 0.150 | 0.106 | 0.750 | 1.000 | 0.250 |
| 5/16 | 0.3125 | 0.3125 | 0.3065 | 1/2 | 0.500 | 0.489 | 0.577 | 0.557 | 13/64 | 0.211 | 0.195 | 0.140 | 0.875 | 1.125 | 0.278 |
| 3/8 | 0.375 | 0.375 | 0.369 | 9/16 | 0.562 | 0.551 | 0.650 | 0.628 | 15/64 | 0.243 | 0.226 | 0.160 | 1.000 | 1.250 | 0.312 |
| 7/16 | 0.4375 | 0.4375 | 0.4305 | 5/8 | 0.625 | 0.612 | 0.722 | 0.698 | 9/32 | 0.291 | 0.272 | 0.195 | 1.125 | 1.375 | 0.357 |
| 1/2 | 0.5 | 0.5 | 0.493 | 3/4 | 0.750 | 0.736 | 0.866 | 0.840 | 5/16 | 0.323 | 0.302 | 0.215 | 1.250 | 1.500 | 0.385 |
| 9/16 | 0.5625 | 0.5625 | 0.5545 | 13/16 | 0.812 | 0.798 | 0.938 | 0.910 | 23/64 | 0.371 | 0.348 | 0.250 | 1.375 | 1.625 | 0.417 |
| 5/8 | 0.625 | 0.625 | 0.617 | 15/16 | 0.938 | 0.922 | 1.083 | 1.051 | 25/64 | 0.403 | 0.378 | 0.269 | 1.500 | 1.750 | 0.455 |
| 3/4 | 0.75 | 0.75 | 0.741 | 1-1/8 | 1.125 | 1.100 | 1.299 | 1.254 | 15/32 | 0.483 | 0.455 | 0.324 | 1.750 | 2.000 | 0.500 |
| 7/8 | 0.875 | 0.875 | 0.866 | 1-5/16 | 1.312 | 1.285 | 1.516 | 1.465 | 35/64 | 0.563 | 0.531 | 0.378 | 2.000 | 2.250 | 0.556 |
| 1 | 1 | 1 | 0.99 | 1-1/2 | 1.500 | 1.469 | 1.732 | 1.675 | 39/64 | 0.627 | 0.591 | 0.416 | 2.250 | 2.500 | 0.625 |
| 1-1/8 | 1.125 | 1.125 | 1.114 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 11/16 | 0.718 | 0.658 | 0.461 | 2.500 | 2.750 | 0.714 |
| 1-1/4 | 1.25 | 1.25 | 1.239 | 1-7/8 | 1.875 | 1.812 | 2.165 | 2.066 | 25/32 | 0.813 | 0.749 | 0.530 | 2.750 | 3.000 | 0.714 |
| 1-1/2 | 1.5 | 1.5 | 1.488 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 15/16 | 0.974 | 0.902 | 0.640 | 3.250 | 3.500 | 0.833 |
You’ll find our carbon steel bolts silently at work all around you, forming the critical connections in the steel frameworks of new buildings and bridges that are shaping Kinshasa’s skyline. They are indispensable in the assembly of heavy machinery, securing everything from manufacturing equipment to agricultural implements. From the construction sites that dot our landscape to vital repairs in the automotive and infrastructure sectors, these bolts provide the unwavering strength needed to ensure structural integrity and safety in a multitude of applications.
Yoane Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Kinshasa, Congo.
