Based in the heart of Kinshasa, Yoane Steel has established itself as a trusted partner for industrial projects across the Congo. We take pride in supplying robust materials like the Carbon Steel A671 Gr CC 70 Pipe, a product chosen for its reliability in demanding low-temperature environments. Our commitment is to ensure that our clients receive not only top-quality materials but also the expert support needed to bring their critical infrastructure and construction projects to a successful completion.

Carbon Steel A671 Gr CC 70 Pipes Size Chart, ASME SA 672 Gr CC 70 Pipes Price in Mbuji-Mayi, Carbon Steel A671 Gr CC 70 Pipes Weight Chart, Carbon Steel A671 Gr CC 70 Pipes Thickness, ASTM A671 Gr CC 70 Pipes Supplier in Congo, Carbon Steel A671 Gr CC 70 Pipes Exporter in Congo, Carbon Steel A671 Gr CC 70 Pipes Price List in Kinshasa, ASTM A671 Gr CC 70 Pipes Supplier in Kisangani, Carbon Steel A671 Gr CC 70 Pipes Exporter in Lubumbashi, CS A671 Gr CC 70 Pipes Exporter in Bukavu

CS A671 Gr CC 70 Seamless Pipes

Carbon Steel A671 Gr CC 70 Welded Pipes

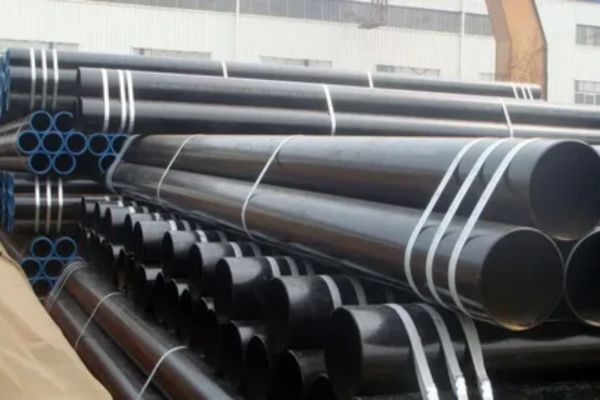

Carbon Steel A671 Gr CC 70 EFW Pipes

What is Carbon Steel A671 Gr CC 70 Pipe?

The composition of this pipe is a careful balance of carbon and manganese, engineered specifically to maintain its integrity when the temperature drops. This particular grade is defined by its excellent notch toughness, meaning it can withstand impact and stress even in cold service conditions. This combination of a resilient chemical makeup and proven mechanical strength makes it a dependable choice for systems where failure is not an option.

ASTM A671 Gr CC 70 Pipes Sizes in mm, ASME SA 671 Gr CC 70 Pipes Distributor in Bukavu, Carbon Steel A671 Gr CC 70 Pipes in Mbuji-Mayi, ASTM A671 Gr CC 70 Pipes Supplier in Lubumbashi, Carbon Steel A671 Gr CC 70 Pipes Distributor in Congo, CS A671 Gr CC 70 Pipes Supplier in Kinshasa, ASTM A671 Gr CC 70 Pipes Exporter in Kisangani, ASME SA 672 Gr CC 70 Pipes Manufacturer in Lubumbashi, Carbon Steel A671 Gr CC 70 Pipes Price List in Congo

Carbon Steel A671 Gr CC 70 Pipe Specification

Specification	ASTM A671 /ASME SA671
Material Test Certificate	Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC
Type	EFW (ELECTRIC FUSION WELDED PIPES)
Material	A515 Gr 70
Outer Diameter Size	16″ NB To 100″ NB (Nominal Bore Size)
Wall Thickness	Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness
Packaging	Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
Class Designation	CLASS 10, 11, 12, 13, 20, 21, 22, 23, 30, 31, 32, 33, 40, 41, 42
Length	5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size.
Other Testing	NACE MR0175, NACE TM0177, NACE TM0284, CHARPY V-NOTCH TEST, RADIOGRAPHIC EXAMINATION, XRAY, ULTRASONIC EXAMINATION, LIQUID PENETRANT, MAGNETIC PARTICLE, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc.
Dimension	All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API.
Value Added Services	Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment
Coating	Epoxy Coating / Colour Paint Coating / 3LPE Coating.
Shipment & Transportation	By Road – Truck / Train, By Sea – Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air – Freighter Civil Passenger and Cargo Planes
Standards	CC70, JIS JPI-SB49

Carbon Steel A671 Gr CC 70 Pipe Chemical Composition

Specification	Steel grade	Chemical composition						Remarks
Specification	Steel grade	C	Si	Mn	P	S	Ti	Remarks
Pipes for pressure service ASTM A671 CC70	-/A45	-/0.17	–	0.98	0.035	0.035	–	A671/ A672
	-/A50	-/0.22	–
	CA55/A55	0.28	–
	-/B55	-/0.20	0.13 ~0.45
	CB60/B60	0.24
	CB65/B65	0.28
	CB70/C70	0.31		1.30
	-/C55	-/0.18		0.55 ~0.98
	CC60/C60	0.21		0.55 ~0.98
	CC65/C65	0.24		0.79 ~1.30
	CC70/C70	0.27		0.79 ~1.30

Carbon Steel A671 Gr CC 70 Pipe Mechanical Properties

Products	Steel Grade	BASE METAL MECHANICAL COMPOSITION				Welding point tensile strength (N/mm2)	Remarks
Products	Steel Grade	Yield point (N/mm2)	Tensile Stregth (N/mm2)	Test Pieces	Elongation (%)	Welding point tensile strength (N/mm2)	Remarks
Pipes for pressure service ASTM A671 CC70	-/A45	-/165	-/310~450	–	-/30	-/310~450	A671/ A672
	-/A50	-/185	-/345~485		-/28	-/345~485
	CA55/A55	205	380~515		27	380~515
	-/B55	-/205	-/380~515		-/27	-/380~515
	CB60/B60	220	415~550		25	415~550
	CB65/B65	240	450~585		23	450~585
	CB70/B70	260	485~620		21	485~620
	-/C55	-/205	-/380~515		-/27	-/380~515
	CC60/C60	220	415~550		25	415~550
	CC65/C65	240	450~585		23	450~585
	CC70/C70	260	485~620		21	485~620

If You Are Looking To Buy High Quality Pipes, Sheet, Fittings and Flanges

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Carbon Steel A671 Gr CC 70 Pipe Pressure Rating

Maximum Allowable Pressure (psi)
NPS	Outside Diameter	Schedule
(in)	(in)	10	20	30	STD	40	60	XS	80	100	120	140	160	XXS
1/4	0.54				7985	7985		10798	10798
3/8	0.675				6606	6606		9147	9147
1/2	0.84				6358	6358		8575	8575				10908	17150
3/4	1.05				5273	5273		7187	7187				10220	14373
1	1.315				4956	4956		6670	6670				9316	13340
1 1/4	1.66				4133	4133		5638	5638				7380	11276
1 1/2	1.9				3739	3739		5158	5158				7247	10316
2	2.375				3177	3177		4498	4498				7097	8995
2 1/2	2.875				3460	3460		4704	4704				6391	9408
3	3.5				3024	3024		4200	4200				6132	8400
3 1/2	4				2769	2769		3896	3896
4	4.5				2581	2581		3670	3670		4769		5782	7339
5	5.563				2273	2273		3303	3303		4404		5505	6606
6	6.625				2071	2071		3195	3195		4157		5318	6390
8	8.625		1420	1574	1829	1829	2307	2841	2841	3375	4085	4613	5147	4971
10	10.75		1140	1399	1664	1664	2279	2279	2708	3277	3847	4558	5128	4558
12	12.75		961	1268	1441	1560	2160	1922	2644	3244	3843	4324	5042	3843
14	14	875	1092	1313	1313	1533	2079	1750	2625	3283	3829	4375	4921
16	16	766	956	1148	1148	1531	2009	1531	2585	3157	3733	4404	4882
18	18	681	849	1192	1021	1530	2042	1361	2553	3147	3743	4252	4848
20	20	613	919	1225	919	1455	1989	1225	2526	3138	3675	4288	4824
22	22	557	835	1114	835		1949	1114	2506	3063	3619	4176	4733
24	24	510	766	1147	766	1405	1978	1021	2489	3126	3700	4210	4786
30	30	510	817	1021	613			817
32	32	478	766	957	574	1054
34	34	450	721	901	540	992
36	36	425	681	851	510	1021
42	42		583	729	438	875

Top Manufacturer and Supplier of Carbon Steel A671 Gr CC 70 Pipe in Kinshasa, Congo

Yoane Steel is a top manufacturer and supplier of high-quality Carbon Steel A671 Gr CC 70 Pipe products in Kinshasa, Congo. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.

Carbon Steel A671 Gr CC 70 Pipes Price List in Congo, ASTM A671 Gr CC 70 Pipes Distributor in Bukavu, Carbon Steel A519 Grade B Pipes in Mbuji-Mayi, Carbon Steel A671 Gr CC 70 Pipes Supplier in Lubumbashi, Carbon Steel A671 Gr CC 70 Pipes Distributor in Congo, ASME SA 671 Gr CC 70 Pipes Stockist in Kisangani, Carbon Steel A671 Gr CC 70 Pipes Supplier in Kinshasa, Carbon Steel A671 Gr CC 70 Pipes Exporter in Kisangani, ASTM A671 Gr CC 70 Pipes Sizes in mm, CS A671 Gr CC 70 Pipe Manufacturer in Lubumbashi

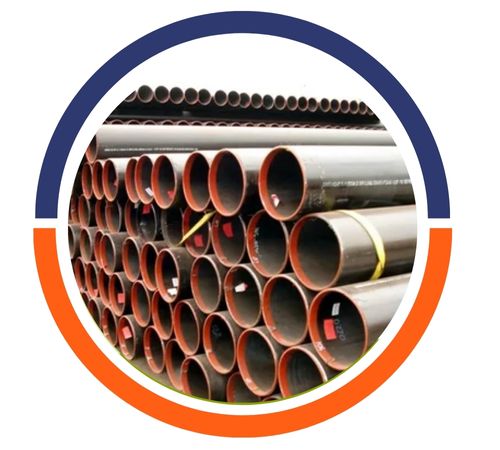

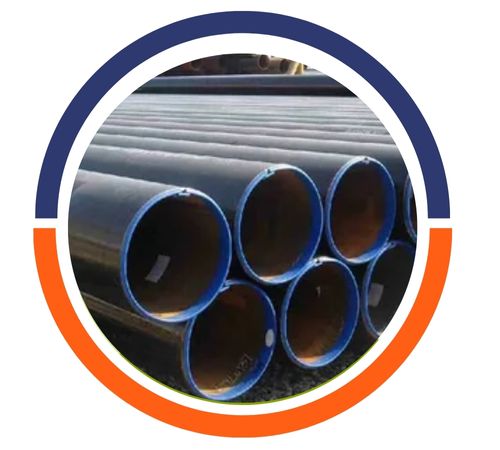

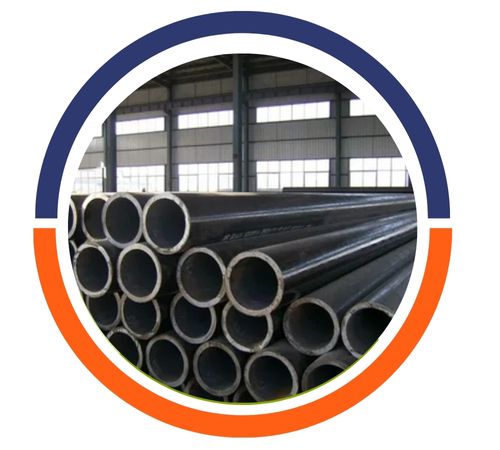

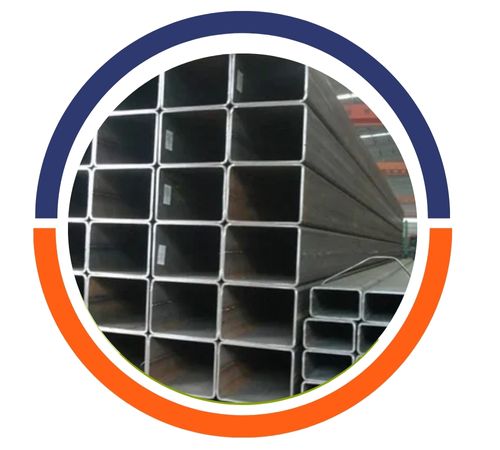

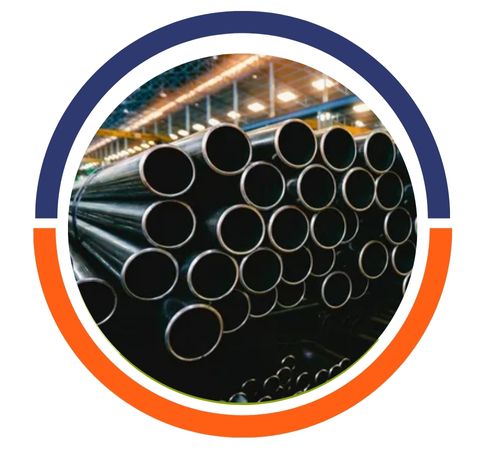

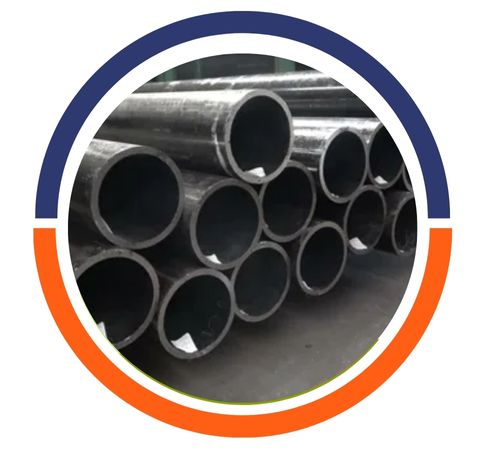

Types of Carbon Steel A671 Gr CC 70 Pipe

CS A671 Gr CC 70 Pipes Exporter in Bukavu, ASTM A671 Gr CC 70 Pipes Size Chart, Carbon Steel A671 Gr CC 70 Pipes Price in Mbuji-Mayi, Carbon Steel A519 Grade B Pipes Weight Chart, ASTM A671 Gr CC 70 Pipes Thickness, Carbon Steel A519 Pipe Supplier in Congo, CS A671 Gr CC 70 Pipes Stockist in Kisangani, ASTM A671 Gr CC 70 Pipes Exporter in Congo, Carbon Steel A671 Gr CC 70 Pipes Price List in Kinshasa, Carbon Steel A671 Gr CC 70 Pipes Supplier in Kisangani, Carbon Steel A671 Gr CC 70 Pipes Exporter in Lubumbashi

Uses of Carbon Steel A671 Gr CC 70 Pipe

You’ll typically find the A671 Gr CC 70 pipe specified for critical low-pressure systems that operate in chilly conditions. Its primary use is in off-site piping for chemical plants, refrigeration units, and water distribution lines, especially in colder climates or underground installations. It’s the go-to material for ensuring that pipelines remain secure and leak-free, providing peace of mind for engineers managing the flow of essential fluids and gases where temperature is a constant concern.
