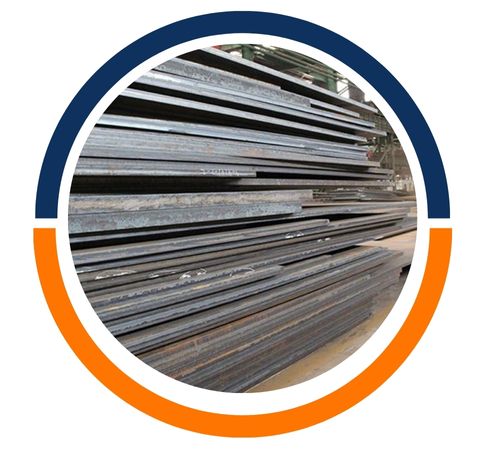

In the heart of Kinshasa, Yoane Steel stands as a trusted partner for industries across the Congo, dedicated to providing robust and reliable solutions. We specialize in supplying high-grade alloy steel sheets and plates, materials engineered for exceptional strength and durability. Our commitment is to support the nation’s growth by delivering products that meet the rigorous demands of critical construction and manufacturing projects, ensuring our clients have a solid foundation for their most ambitious endeavors.
| Specifications | ASTM A387 / ASME SA387 |
| Thickness | 1mm-300mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, 4050mm etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, 12000mm, 15000mm etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching Manufacturer and Supplier |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR) |
| C | Mn | P | S | SI | Cr | Mo | |
| Grade 5 | 0.15 max | 0.3 – 0.6 | 0.035 | 0.03 | 0.5 max | 4.00 – 6.00 | 0.45 – 0.65 |
| Grade 9 | 0.15 max | 0.30 – 0.6 | 0.03 | 0.03 | 1.0 max | 8.0 – 10.0 | 0.9 – 1.1 |
| Grade 11 | 0.05 – 0.17 | 0.4 – 0.65 | 0.035 | 0.035 | 0.5 – 0.80 | 1.0 – 1.5 | 0.45 – 0.65 |
| Grade 12 | 0.05 – 0.17 | 0.4 – 0.65 | 0.035 | 0.035 | 0.15 – 0.4 | 0.8 – 1.15 | 0.45 – 0.6 |
| Grade 22 | 0.05 – 0.15 | 0.3 – 0.6 | 0.035 | 0.035 | 0.5 max | 2.0 – 2.5 | 0.9 – 1.1 |
| Tensile Strength (ksi) | Tensile Strength (MPa) | Yield Strength (ksi) | Yield Strength (MPa) | Elongation in 2 inches (%) | ||
| A 387 Grade 5 | Class 1 | 60-85 | 415-585 | 30 | 205 | 18 |
| Class 2 | 75-100 | 515-690 | 45 | 310 | 18 | |
| A 387 Grade 9 | Class 1 | 60-85 | 415-585 | 30 | 205 | 18 |
| Class 2 | 75-100 | 515-690 | 45 | 310 | 18 | |
| A 387 Grade 11 | Class 1 | 60-85 | 415-585 | 35 | 240 | 22 |
| Class 2 | 70-90 | 485-620 | 45 | 310 | 22 | |
| A 387 Grade 12 | Class 1 | 50-80 | 380-550 | 33 | 230 | 22 |
| Class 2 | 65-85 | 450-585 | 40 | 275 | 22 | |
| A 387 Grade 22 | Class 1 | 60-85 | 415-585 | 30 | 205 | 18 |
| Class 2 | 75-100 | 515-690 | 45 | 310 | 18 | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
The strength of our alloy steel comes from a careful blend of elements like chromium, nickel, and molybdenum, which are precisely added to iron and carbon. This thoughtful composition gives the material its remarkable mechanical properties, including superior tensile strength and impressive resistance to impact and wear. It’s this inherent toughness that allows our sheets and plates to perform reliably under heavy loads and in challenging environments where ordinary steel might falter.
| Size (in inches) | Size (in mm) |
|---|---|
| .125″ | 3.18mm |
| .134″ | 3.40mm |
| .156″ | 3.96mm |
| .187″ | 4.75mm |
| .250″ | 6.35mm |
| .312″ | 7.92mm |
| .375″ | 9.53mm |
| .500″ | 12.7mm |
| .600″ | 15.9mm |
| .750″ | 19.1mm |
| .875″ | 22.2mm |
| 1″ | 25.4mm |
| 1.125″ | 28.6mm |
| 1.250″ | 31.8mm |
| 1.500″ | 38.1mm |
| 1.750″ | 44.5mm |
| 2″ | 50.8mm |
| 2.500″ | 63.5mm |
| 3″ | 76.2mm |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
You’ll find our alloy steel sheets and plates at the core of the most demanding applications. They are essential for constructing the skeletons of large industrial buildings, building robust machinery for mining operations, and fabricating heavy-duty equipment for the agricultural sector. Their reliability also makes them a preferred choice for critical components in transportation and infrastructure, proving indispensable for projects that require a material that won’t just last, but will consistently perform under pressure.
Yoane Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Kinshasa, Congo.
