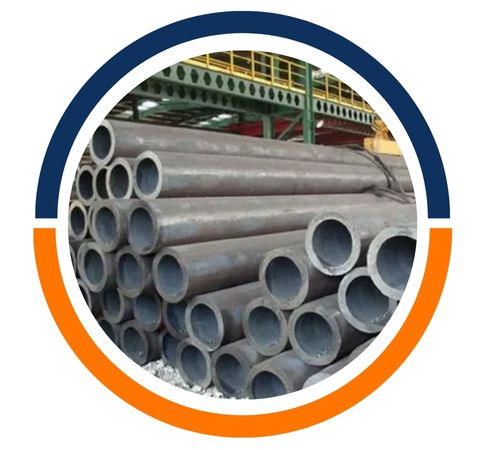

In the dynamic industrial landscape of Kinshasa, Yoane Steel stands as a trusted partner for robust and reliable materials. We are dedicated to supplying high-quality AISI 4140 pipes, engineered to meet the rigorous demands of local projects. Our commitment goes beyond mere supply; we focus on empowering the growth of Congo’s key sectors by providing durable solutions that withstand challenging operational environments. When you choose Yoane Steel, you’re choosing a local resource built on a foundation of expertise and dependable service.
The strength of AISI 4140 pipes comes from a specific composition, primarily a blend of chromium and molybdenum. This combination gives the steel its notable toughness and high tensile strength, making it significantly stronger than standard carbon steels. Furthermore, these pipes can be heat-treated through processes like quenching and tempering to achieve an exceptional balance of hardness and ductility. This ensures they can absorb significant impact and resist wear, providing a long service life even under strenuous conditions.
| Standard | AISI 4140, ASTM A519 (with IBR Test Certificate) |
| Size | 1/2” NB to 36” NB |
| Thickness | 3-12mm |
| Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm |
| Craft | Cold rolled and Cold drawn |
| Type | Seamless / ERW / Welded / Fabricated |
| available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| Length | Standard Double & In Cut length also. |
| End | Plain End, Beveled End, Treaded |
| Specialized in | Large Diameter AISI 4140 Pipe |
| Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| Application | Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service |
| Element | Content (%) |
|---|---|
| Iron, Fe | 96.785 – 97.77 |
| Chromium, Cr | 0.80 – 1.10 |
| Manganese, Mn | 0.75 – 1.0 |
| Carbon, C | 0.380 – 0.430 |
| Silicon, Si | 0.15 – 0.30 |
| Molybdenum, Mo | 0.15 – 0.25 |
| Sulfur, S | 0.040 |
| Phosphorous, P | 0.035 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength |
655 MPa |
95000 psi |
| Yield strength |
415 MPa |
60200 psi |
| Bulk modulus (typical for steel) |
140 GPa |
20300 ksi |
| Shear modulus (typical for steel) |
80 GPa |
11600 ksi |
| Elastic modulus |
190-210 GPa |
27557-30458 ksi |
| Poisson’s ratio |
0.27-0.30 |
0.27-0.30 |
| Elongation at break (in 50 mm) |
25.70% |
25.70% |
| Hardness, Brinell |
197 |
197 |
| Hardness, Knoop (converted from Brinell hardness) |
219 |
219 |
| Hardness, Rockwell B (converted from Brinell hardness) |
92 |
92 |
| Hardness, Rockwell C (converted from Brinell hardness. Value below normal HRC range, for comparison purposes only) |
13 |
13 |
| Hardness, Vickers (converted from Brinell hardness) |
207 |
207 |
| Machinability (based on AISI 1212 as 100 machinability) |
65 |
65 |
| Properties | Metric | Imperial |
|---|---|---|
|
Density |
7.85 g/cm3 |
0.284 lb/in³ |
|
Melting point |
1416°C |
2580°F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yoane Steel is a major manufacturer and a supplier of premium AISI 4140 Pipes in Kinshasa, the Congo. With specialization in steel solutions, we offer a variety of products including carbon steel, alloy steel, light steel and galvanized steel. Our wide bearing has pipes, pipes, flanges, pipe fittings, forged fittings, sheets and plates. We are famous for our reliable distribution and extraordinary customer service, and are committed to offering high quality steel materials that ensure durability and better performance in different industrial applications. We are committed to skill, and we are your reliable partners for all steel requirements.
| Standard/ Grade | UNS | Temper | Specification |
|---|---|---|---|
| AISI 4140 Alloy Steel | UNS G41400 | A, N, T | AMS6381 |
| O.D.(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) |
|---|---|---|
| 38.1 x 3.2 | 57.0 x 4.9 | 76.2 x 4.0 |
| 38.1 x 4.0 | 57.0 x 6.3 | 76.2 x 5.0 |
| 38.1 x 6.3 | 57.0 x 7.9 | 76.2 x 6.3 |
| 42.4 x 3.2 | 60.3 x 3.2 | 82.5 x 4.5 |
| 42.4 x 4.0 | 60.3 x 3.6 | 88.9 x 3.2 |
| 44.5 x 3.2 | 60.3 x 5.0 | 88.9 x 3.6 |
| 44.5 x 6.3 | 63.5 x 3.2 | 88.9 x 4.0 |
| 48.3 x 3.2 | 63.5 x 3.6 | 101.6 x 3.6 |
| 48.3 x 3.6 | 63.5 x 4.0 | 101.6 x 4.5 |
| 50.8 x 4.5 | 63.5 x 6.3 | 101.6 x 6.3 |
| 51.0 x 3.2 | 63.5 x 7.9 | 114.3 x 3.6 |
| 51.0 x 3.6 | 70.0 x 3.2 | 114.3 x 5.0 |
| 51.0 x 6.3 | 70.0 x 3.6 | 139.7 x 4.0 |
| 57.0 x 3.2 | 70.0 x 6.3 | 139.7 x 5.0 |
| 57.0 x 3.6 | 76.2 x 3.6 | 139.7 x 6.3 |
| Size NPS | Pipe O.D. | Wall Thickness | Pipe I.D. | Weight per Foot | Standard to XXHY | Schedule Pipe # | Section Modulus | Gallon Capacity Per Linear Foot |
| 1/2 | 0.84 | 0.109 | 0.622 | 0.85 | STD | 40 | .0407 | .0158 |
| 0.147 | 0.546 | 1.09 | XHY | 80 | .0478 | .0122 | ||
| 0.188 | 0.464 | 1.31 | 160 | .0528 | .0088 | |||
| 0.294 | 0.252 | 1.72 | XXHY | .0577 | .0026 | |||
| 3/4 | 1.05 | 0.113 | 0.824 | 1.13 | STD | 40 | .0705 | .0277 |
| 0.154 | 0.742 | 1.48 | XHY | 80 | .0853 | .0225 | ||
| 0.219 | 0.612 | 1.95 | 160 | .1006 | .0153 | |||
| 0.308 | 0.434 | 2.44 | XXHY | .1103 | .0077 | |||
| 1 | 1.315 | 0.133 | 1.049 | 1.68 | STD | 40 | .1328 | .0449 |
| 0.179 | 0.957 | 2.17 | XHY | 80 | .1606 | .0374 | ||
| 0.250 | 0.815 | 2.85 | 160 | .1904 | .0271 | |||
| 0.358 | 0.599 | 3.66 | XXHY | .2136 | .0146 | |||
| 1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 | STD | 40 | .2346 | .0777 |
| 0.191 | 1.278 | 3.00 | XHY | 80 | .2913 | .0666 | ||
| 0.250 | 1.160 | 3.77 | 160 | .3421 | .0549 | |||
| 0.382 | 0.896 | 5.22 | .4110 | .0328 | ||||
| 1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 | STD | 40 | .3262 | .1058 |
| 0.200 | 1.500 | 3.63 | XHY | 80 | .4118 | .0918 | ||
| 0.281 | 1.338 | 4.86 | 160 | .5079 | .0730 | |||
| 0.400 | 1.100 | 6.41 | .5977 | .0494 | ||||
| 2 | 2.375 | 0.109 | 2.157 | 2.64 | 10 | .4205 | .1898 | |
| 0.154 | 2.067 | 3.66 | STD | 40 | .5606 | .1743 | ||
| 0.218 | 1.939 | 5.03 | XHY | 80 | .7309 | .1534 | ||
| 0.250 | 1.875 | 5.68 | .8045 | .1434 | ||||
| 0.281 | 1.813 | 6.29 | .8666 | .1344 | ||||
| 0.344 | 1.687 | 7.47 | 160 | .9806 | .1161 | |||
| 0.436 | 1.503 | 9.04 | XXHY | 1.1043 | .0922 | |||
| 2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 | 10 | .6870 | .2833 | |
| 0.203 | 2.469 | 5.80 | STD. | 40 | 1.0640 | .2487 | ||
| 0.216 | 2.443 | 6.14 | 1.1169 | .2435 | ||||
| 0.250 | 2.375 | 7.02 | 1.2468 | .2301 | ||||
| 0.276 | 2.323 | 7.67 | XHY | 80 | 1.3386 | .2202 | ||
| 0.375 | 2.125 | 10.02 | 160 | 1.6371 | .1842 | |||
| 0.552 | 1.771 | 13.71 | XXXHY | 1.9971 | .1280 | |||
| 3 | 3.50 | 0.120 | 3.260 | 4.34 | 1.0411 | .4336 | ||
| 0.156 | 3.188 | 5.58 | 1.3122 | .4147 | ||||
| 0.172 | 3.156 | 6.12 | 1.4265 | .4064 | ||||
| 0.188 | 3.124 | 6.66 | 1.5342 | .3984 | ||||
| 0.216 | 3.068 | 7.58 | STD. | 40 | 1.7241 | .3840 | ||
| 0.250 | 3.000 | 8.69 | 1.9372 | .3672 | ||||
| 0.281 | 2.938 | 9.67 | 2.1207 | .3521 | ||||
| 0.300 | 2.900 | 10.26 | XHY | 80 | 2.2253 | .3431 | ||
| 0.438 | 2.624 | 14.34 | 160 | 2.8774 | .2811 | |||
| 0.600 | 2.300 | 18.6 | XXHY | 3.4243 | .2158 | |||
| 3 1/2 | 4.0 | 0.120 | 3.760 | 4.98 | 10 | 1.3776 | .5768 | |
| 0.226 | 3.548 | 9.12 | STD. | 140 | 2.3939 | .5136 | ||
| 0.250 | 3.500 | 10.02 | 2.6001 | .4998 | ||||
| 0.281 | 3.438 | 11.17 | 2.8562 | .4821 | ||||
| 0.318 | 3.364 | 12.52 | XHY | 80 | 3.1400 | .4617 | ||
| 0.636 | 2..728 | 22.87 | XXHY | 4.8795 | .3085 | |||
| 4 | 4.5 | 0.120 | 4.260 | 5.62 | 10 | 1.7612 | .7404 | |
| 0.156 | 4.188 | 7.24 | 2.2354 | .7156 | ||||
| 0.188 | 4.124 | 8.67 | 2.6296 | .6942 | ||||
| 0.203 | 4.094 | 9.32 | 2.8173 | .6838 | ||||
| 0.219 | 4.062 | 10.02 | 3.0184 | .6725 | ||||
| 0.237 | 4.026 | 10.80 | STD. | 40 | 3.2145 | .6613 | ||
| 0.250 | 4.000 | 11.36 | 3.3611 | .6528 | ||||
| 0.281 | 3.938 | 12.67 | 60 | 3.7021 | .6326 | |||
| 0.312 | 3.876 | 13.97 | 4.0273 | .6126 | ||||
| 0.337 | 3.826 | 15.00 | XHY | 80 | 4.2713 | .5972 | ||
| 0.438 | 3.624 | 19.02 | 120 | 5.1790 | .5361 | |||
| 0.531 | 3.438 | 22.53 | 160 | 5.8997 | .4822 | |||
| 0.674 | 3.152 | 27.57 | XXHY | 6.7927 | .4054 | |||
| 5 | 5.563 | 0.188 | 5.187 | 10.80 | 4.1161 | 1.0979 | ||
| 0.219 | 5.125 | 12.51 | 4.7279 | 1.0716 | ||||
| 0.258 | 5.047 | 14.63 | STD. | 40 | 5.4500 | 1.0391 | ||
| 0.281 | 5.001 | 15.87 | 5.8644 | 1.0204 | ||||
| 0.312 | 4.939 | 17.51 | 6.4074 | .99647 | ||||
| 0.344 | 4.875 | 19.19 | 6.9358 | .9696 | ||||
| 0.375 | 4.813 | 20.80 | XHY | 80 | 7.4300 | .9449 | ||
| 0.500 | 4.563 | 27.06 | 120 | 9.2534 | .8495 | |||
| &nbsnbsp; | 0.625 | 4.313 | 32.99 | 160 | 10.7976 | .7590 | ||
| 0.750 | 4.063 | 38.59 | XXHY | 12.0954 | .6734 | |||
| 6 | 6.625 | 0.109 | 6.407 | 7.59 | 5 | 3.5769 | 1.6748 | |
| 0.134 | 6.357 | 9.30 | 10 | 4.3475 | 1.6488 | |||
| 0.156 | 6.313 | 10.79 | 5.0107 | 1.6260 | ||||
| 0.188 | 6.249 | 12.94 | 5.9351 | 1.5937 | ||||
| 0.203 | 6.219 | 13.94 | 6.3804 | 1.5780 | ||||
| 0.219 | 6.187 | 15.00 | 6.8261 | 1.5620 | ||||
| 0.250 | 6.125 | 17.04 | 7.6905 | 1.5306 | ||||
| 0.280 | 6.065 | 18.99 | STD. | 40 | 8.4958 | 1.5008 | ||
| 0.312 | 6.001 | 21.06 | 9.3416 | 1.4688 | ||||
| 0.344 | 5.937 | 23.10 | 10.111 | 1.4391 | ||||
| 0.375 | 5.875 | 25.05 | 10.893 | 1.4082 | ||||
| 0.432 | 5.761 | 28.60 | XHY | 80 | 12.224 | 1.3541 | ||
| 0.500 | 5.625 | 32.74 | 13.711 | 1.2909 | ||||
| 0.562 | 5.501 | 36.43 | 120 | 14.9806 | 1.2346 | |||
| 0.625 | 5.375 | 40.09 | 16.1821 | 1.1787 | ||||
| 0.719 | 5.187 | 45.39 | 160 | 17.8243 | 1.0977 | |||
| 0.864 | 4.897 | 53.21 | XXHY | 20.025 | .9784 | |||
| 1.000 | 4.625 | 60.13 | 21.7719 | .8727 | ||||
| 1.125 | 4.375 | 66.14 | 23.1237 | .7809 |
From the heavy machinery driving our mining operations to the critical components in construction and manufacturing, AISI 4140 pipes are a versatile workhorse. Their exceptional strength makes them ideal for hydraulic systems, high-pressure pipelines, and the framework for industrial equipment. You will also find them in the automotive sector for axles and gears, and in the oil and gas industry where reliability is paramount. Essentially, these pipes are chosen for any application that demands a material capable of handling high stress, pressure, and abrasive conditions.
