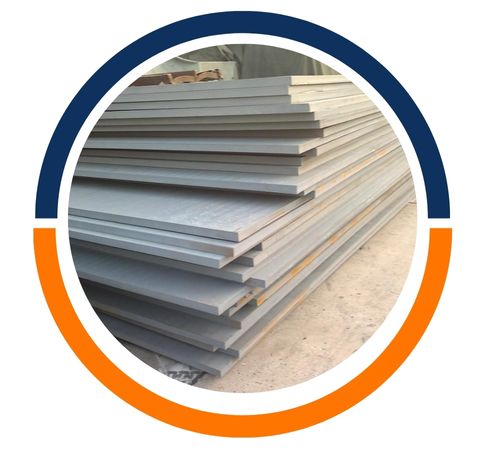

Located in the heart of the Democratic Republic of Congo, Yoane Steel stands as a cornerstone of industrial supply in Kinshasa. We take pride in providing robust and reliable materials that are essential for national and international maritime projects. Our commitment is to deliver superior quality ABS AH36 shipbuilding steel sheets and plates, ensuring that each product meets the rigorous demands of modern ship construction and supports the growth of the vital maritime sector across our region.
The composition of ABS AH36 steel is carefully engineered with elements like carbon, manganese, and phosphorus to achieve a perfect balance of strength and durability. This specific formulation gives the steel its outstanding mechanical properties, including high yield strength and excellent toughness, even in demanding, low-temperature marine environments. It is precisely these characteristics that make it a trusted choice for critical structural applications where failure is not an option.
STANDARD:Â ASTM A131, ASME SA131
PLATES QUALITY: AH 36 (Dead Soft Quality)
THICKNESS: 3/16″ – 4″, 4-60mm
WIDTH: 48″ – 120″, 2000 / 2500 / 3000mm
LENGTH: 96″ – 480″, 6000 / 8000 / 10000 / 12000 mm
| C | Si | Mn | P | S | Cr | Mo | Ni | Cu | Cb | V |
| 0.18 | 0.10/0.50 | 0.90/1.60 | 0.035 | 0.035 | 0.20 | 0.08 | 0.40 | 0.35 | 0.02/0.05 | 0.05/0.10 |
| Grade | Re | Rm | Elongation | Â |
| A50mm | A200mm | |||
| MPan | MPa | % | % | |
| AH36 | 355 | 490/620 | 22 | 19 |
| DNV | GL | LR | BV | CCS | NK | KR | RINA |
| NV A36 | GL A36 | LR A36 | BV AH36 | CCS A36 | KA36 | RA 36 | RINA AH36 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yoane Steel is one of the most prominent manufacturers and suppliers of superior quality ABS AH36 Shipbuilding Steel Sheet and Plates in Kinshasa, Congo. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.Â
| theoretical weight | Thickness (mm) | Thickness (mm) | theoretical weight | ||
|---|---|---|---|---|---|
| Kg/m2 | Kg/ft2 | Kg/m2 | Kg/ ft2 | ||
| 47.10 | 4.376 Kg/ft2 | 6 | 25 | 196.25 | 18.962 Kg/ ft2 |
| 54.95 | 5.105 Kg/ft2 | 7 | 26 | 204.10 | 20.420 Kg/ ft2 |
| 86.35 | 8.751 Kg/ft2 | 11 | 32 | 251.20 | 25.525 Kg/ ft2 |
| 172.70 | 16.044 Kg/ft2 | 22 | 50 | 392.50 | 36.464 Kg/ ft2 |
| 62.80 | 5.834 Kg/ft2 | 8 | 28 | 219.80 | 21.879 Kg/ ft2 |
| 157.00 | 14.586 Kg/ft2 | 20 | 48 mm | 376.80 | 35.006 Kg/ ft2 |
| 78.50 | 7.293 Kg/ft2 | 10 | 30 mm | 235.50 | 23.337 Kg/ ft2 |
| 94.20 | 10.21 Kg/ft2 | 12 | 34 mm | 266.90 | 26.254 Kg/ ft2 |
| 125.60 | 11.669 Kg/ft2 | 16 | 40 mm | 314.00 | 29.172 Kg/ ft2 |
| 141.30 | 13.127 Kg/ft2 | 18 | 45 mm | 353.25 | 32.818 Kg/ ft2 |
| 109.90 | 10.939 Kg/ft2 | 14 | 35 mm | 274.75 | 27.713 Kg/ ft2 |
| 188.40 | 18.232 Kg/ft2 | 24 | |||
| Max. width | Thickness |
|---|---|
| Grade A | From to up to |
| 1370 | 1.70 to 1.80 |
| 1280 | 1.60 to 1.70 |
| 1440 | 1.80 to 1.90 |
| 1520 | 1.90 to 2.00 |
| 1170 | 1.49 to 1.60 |
| 2070 | 12.70 to 20.00 |
| 1590 | 2.00 to 2.20 |
| 1730 | 2.20 to 2.40 |
| 1880 | 2.60 to 2.80 |
| 1960 | 2.80 to 3.12 |
| 1800 | 2.40 to 2.60 |
| 2070 | 3.12 to 12.70 |
The primary use for our AH36 steel is in the construction of oceangoing vessels, where it forms the essential skeleton of ships, from the hull to the deck and bulkheads. Its exceptional strength-to-weight ratio is crucial for building larger, more efficient ships that can withstand the immense pressures of the sea. Beyond shipbuilding, this versatile material is also frequently used in the fabrication of offshore platforms and other heavy-duty marine structures that require unparalleled resilience against harsh weather and corrosive saltwater.
Yoane Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Kinshasa, Congo.
